U225 mesotherapy gun is single needle injection machine work without vacuum. Which means do not need host to install motor. The handle with distance holder so that needle will always coming into same skin depth on different shots. For BOTOX, exosomes and hyaluronic acid injection. Single needle design support more sticky serum will not block machine or needle. It is one of best selling skin booster.

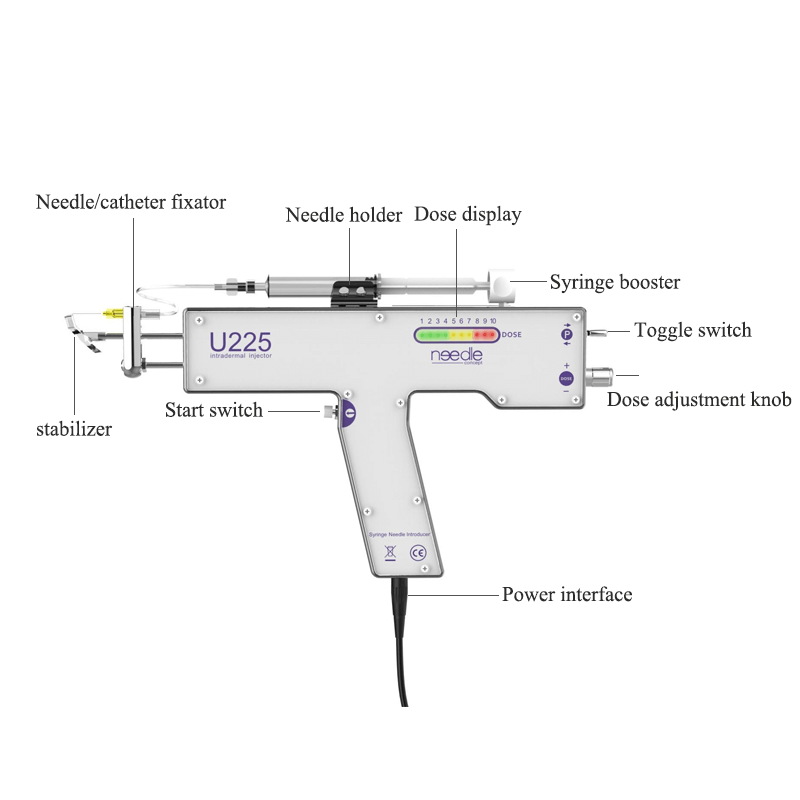

U225 mesotherapy gun structure



The major function about U225 including dose adjustament and display, needle length adjust and injection frequency. Which making whole treatment under control.



Dose adjust



From 1-10 level could be adjusted.

level 1 – each second inject 10υl

Level 2 – each second inject 20υl

…… same on other level

Level 10 – each second inject 100υl



Frequency adjust



According to total serum and working time could adjust frequency as below guidance.



	dose	working frequency	dosage/υl	time(mins)
	1	12000	0.42	42
	2	11000	0.45	38.5
	3	10000	0.5	35
	4	9000	0.56	31.5
	5	8500	0.59	29.75
	6	8000	0.63	28
	7	7500	0.67	26.25
	8	7000	0.71	24.5
	9	6500	0.77	22.75
	10	6000	0.83	21



Needle length



Max needle length 12mm. Turn downwards to increase needle depth, rotate upwards to reduce needle depth. U225 only suitabable for 1mm single needle and fitting with 5mm syringe.



Model design



Shallow import M1, Deep import M2-M7

M2 – 5s

M3-10S

M4-15S

M5-20S

M6-25S

M7-30S



What is difference between U225 mesotherapy gun and other mesotherapy gun?



U225 is single needle machine, do not work with vacuum. The single needle support to enter deeper skin layer. Max 12mm depth, a lot skin beauty serum serum such as BOTOX better use single needle cause need to arrive SMAS layer. Most mesotherapy gun such as derma shine pro and hycoox injector use vacuum working. During needle touch skin will slightly lift skin up during needle insert. Max needle length 2.0mm. Reaching on skin dermis to work on collagen fiber. Mostly for hyaluronic acid injection for hydrating, wrinkle remove and skin lighting treatment. And it is using multi 9pin needle, not suitbale for very depth skin injection.
